Image Layers in Docker & OCI

Building Layered Images

To create an image, you typically use a Dockerfile which defines the contents of the container. This file contains a series of commands, such as:

FROM scratch
RUN echo "hello" > /work/message.txt
COPY content.txt /work/content.txt
RUN rm -rf /work/message.txt

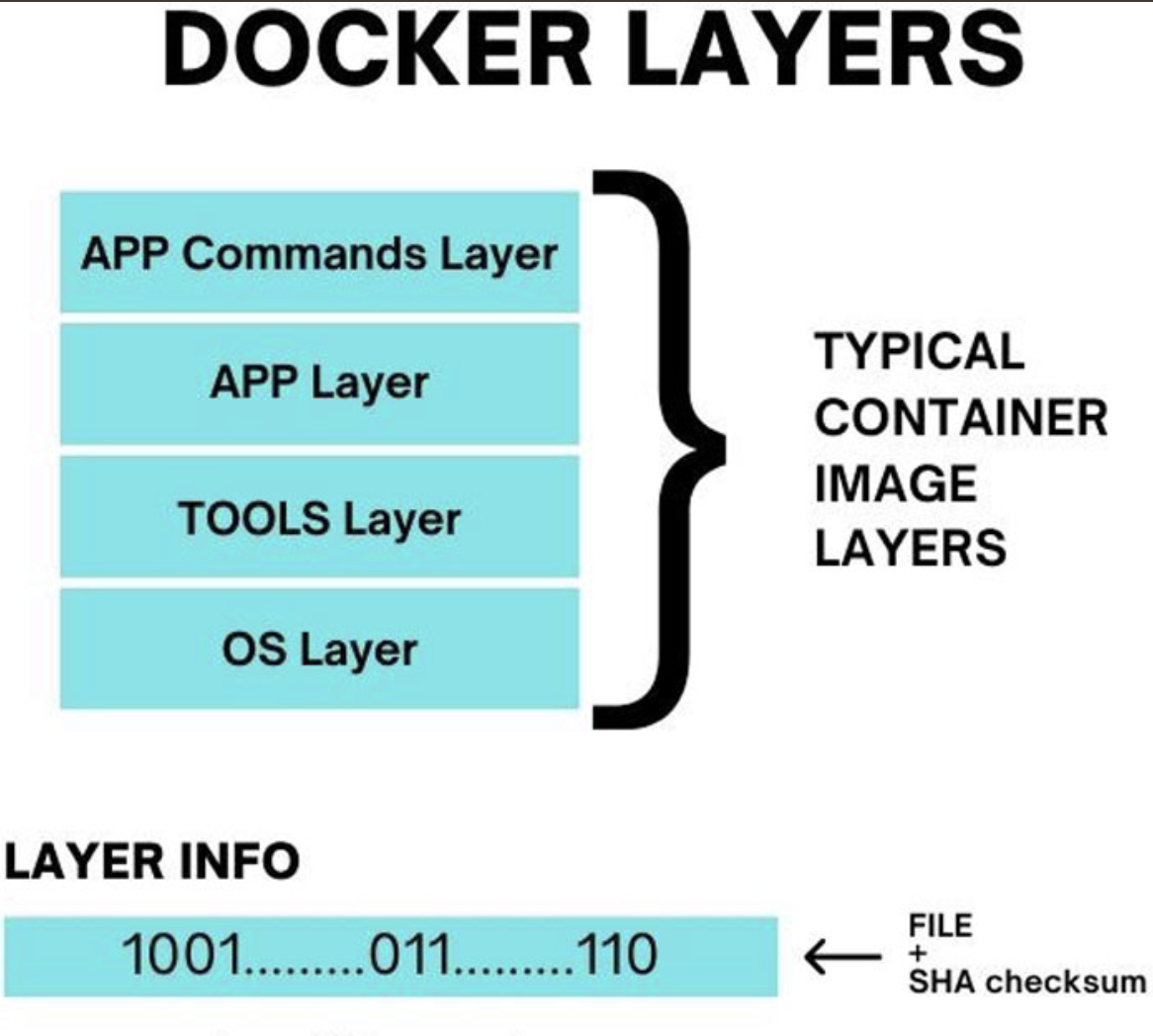

Underneath the surface, the container engine runs these commands sequentially, forming a “layer” for each one. You can visualize each layer as a directory containing all the modified files.

Let’s walk through a potential implementation method.

1. FROM scratch suggests that this container begins with no contents. This first layer could be represented as an empty directory, /img/layer1.
2. Create a second directory, /img/layer2, and copy everything from /img/layer1 into it. Next, execute the subsequent Dockerfile command (which writes a file to /work/message.txt). The contents are written to /img/layer2/work/message.txt, forming the second layer.
3. Create a third directory, /img/layer3, and copy everything from img/layer2 into it. The following Dockerfile command requires copying content.txt from the host to that directory. This file is written to /img/layer3/work/content.txt, creating the third layer.
4. Lastly, create a fourth directory, /img/layer4, and copy everything from img/layer3 into it. The next command deletes the message file, img/layer4/work/message.txt, forming the fourth layer.

To share these layers, the simplest method is to create a compressed .tar.gz for each directory. To minimize total file size, any files that are unchanged copies of data from a previous layer would be removed. A “whiteout file” can be used as a placeholder to indicate when a file was deleted. This file would simply prefix .wh. to the original filename. For instance, the fourth layer would replace the deleted file with a placeholder named .wh.message.txt. When unpacking a layer, any files starting with .wh. can be removed.

Continuing our example, the compressed files would contain:

File	Contents
layer1.tar.gz	Empty file
layer2.tar.gz	Contains /work/message.txt
layer3.tar.gz	Contains /work/content.txt (since message.txt was not modified)
layer4.tar.gz	Contains /work/.wh.message.txt (since message.txt was deleted).The file content.txt was not modified, so it is not included.

Creating numerous images in this way would result in many “layer1” directories. To ensure uniqueness, the compressed file is named according to a digest of its contents, similar to Git’s operation. This approach helps identify identical content and detect any corruption in the files during download. If the digest doesn’t match the file name, the file is corrupt.

To make the results reproducible, a manifest is needed. This file outlines how to arrange the layers and indicates which files should be downloaded and the order in which they should be unpacked. This process allows for the recreation of directory structures. Moreover, it facilitates the reuse and sharing of layers between images, reducing local storage requirements.

In practice, further optimizations are possible. For instance, FROM scratch implies no parent layer, so our example really starts with the contents of layer2. The engine can inspect the files used in the build to determine if a layer needs to be recreated, forming the basis for layer caching. This minimizes the need to build or recreate layers. As an additional optimization, layers that don’t depend on the previous layer can use COPY --link to indicate that the layer won’t need to delete or modify any files from the previous layer. This allows the compressed layer file to be created parallel to the other steps.

Snapshots

A container requires a file system to mount before it can run. Essentially, this means it needs a directory containing all necessary files. Although the compressed layer files house the components of this file system, they can’t be directly mounted and used. Instead, they must be unpacked and structured into a file system, creating what is known as a snapshot.

Creating a snapshot is the reverse of image building. The process begins with downloading the manifest and compiling a list of layers to download. For each layer, a directory, known as the active snapshot, is created containing the contents of the layer’s parent. Following this, a diff applier unpacks the compressed layer file and applies the changes to the active snapshot. The resulting directory, referred to as a committed snapshot, is the final version that is mounted as the container’s file system.

Using our earlier example:

1. The initial layer, FROM scratch, implies we start with an empty directory and move on to the next layer. There is no parent.
2. A directory for layer2 is created. This empty directory is now an active snapshot. The file layer2.tar.gz is downloaded, validated (by comparing the digest to the filename), and unpacked into the directory. The result is a directory containing /work/message.txt. This becomes the first committed snapshot.
3. A directory for layer3 is created, and the contents of layer2 are copied into it. This is a new active snapshot. The file layer3.tar.gz is downloaded, validated, and unpacked. The result is a directory containing /work/message.txt and /work/content.txt. This is the second committed snapshot.
4. A directory for layer4 is created, and the contents of layer3 are copied into it. The file layer4.tar.gz is downloaded, validated, and unpacked. The diff applier recognizes the whiteout file, /work/.wh.message.txt, and deletes /work/message.txt, leaving just /work/content.txt. This is the third committed snapshot.
5. Since layer4 was the last layer, it serves as the basis for a container. To support read and write operations, a new snapshot directory is created and the contents of layer4 are copied into it. This directory is mounted as the container’s file system. Any changes made by the running container will occur in this directory.

If any of these directories already exist, it suggests that another image had the same dependency. Therefore, the engine can skip the download and diff applier and use the layer as-is. In practice, each of these directories and files is named based on the digest of the contents for easier identification. For example, a set of snapshots might look like this:

/var/path/to/snapshots/blobs
└─ sha256
   ├─ 635944d2044d0a54d01385271ebe96ec18b26791eb8b85790974da36a452cc5c
   ├─ 9de59f6b211510bd59d745a5e49d7aa0db263deedc822005ed388f8d55227fc1
   ├─ fb0624e7b7cb9c912f952dd30833fb2fe1109ffdbcc80d995781f47bd1b4017f
   └─ fb124ec4f943662ecf7aac45a43b096d316f1a6833548ec802226c7b406154e9

or alternatively:

Image	Parent
sha256:635944d2044d0a54d01385271ebe96ec18b26791eb8b85790974da36a452cc5c
sha256:9de59f6b211510bd59d745a5e49d7aa0db263deedc822005ed388f8d55227fc1	sha256:635944d2044d0a54d01385271ebe96ec18b26791eb8b85790974da36a452cc5c
sha256:fb0624e7b7cb9c912f952dd30833fb2fe1109ffdbcc80d995781f47bd1b4017f	sha256:9de59f6b211510bd59d745a5e49d7aa0db263deedc822005ed388f8d55227fc1
sha256:fb124ec4f943662ecf7aac45a43b096d316f1a6833548ec802226c7b406154e9	sha256:fb0624e7b7cb9c912f952dd30833fb2fe1109ffdbcc80d995781f47bd1b4017f

The current snapshot system supports plugins that enhance certain functions. For instance, plugins can enable snapshots to be pre-composed and unpacked, which accelerates the process. This feature also allows snapshots to be stored remotely. Moreover, it enables specialized optimizations like just-in-time downloading of necessary files and layers.

Overlays

Although mounting snapshots is straightforward, it often leads to a lot of file turnover and duplication. This not only slows down the initial container start-up but also wastes space. Fortunately, the file system can manage many aspects of the containerization process. For instance, Linux natively supports the mounting of directories as overlays, thereby simplifying the process considerably.

In Linux (or a Linux container running as --privileged or with --cap-add=SYS_ADMIN):

1. Create a tmpfs mount (memory-based file system that will be used to explore the overlay process)

   mkdir /tmp/overlay
   mount -t tmpfs tmpfs /tmp/overlay


2. Create directories for our process. We’ll use lower for the lower (parent) layer, upper for the upper (child) layer, work as a working directory for the file system, and merged to contain the merged file system.

   mkdir /tmp/overlay/{lower,upper,work,merged}


3. Create some files for the experiment. Optionally, you can add files in upper as well.

   cd /tmp/overlay
   echo hello > lower/hello.txt
   echo "I'm only here for a moment" > lower/delete-me.txt
   echo message > upper/upper-message.txt


4. Mount these directories as an overlay type file system. This will create a new file system in the merged directory that contains the combined contents of the lower and upper directory. The work directory will be used to track changes to the file system.

   mount -t overlay overlay -o lowerdir=lower,upperdir=upper,workdir=work merged


5. Explore the file system. You’ll notice that merged contains the combined contents of upper and lower. Then, make some changes:

   rm -rf merged/delete-me.txt
   echo "I'm new" > merged/new.txt
   echo world >> merged/hello.txt


6. As expected, delete-me.txt is removed from merged and a new file, new.txt is created in the same directory. If you tree the directories, you’ll see something interesting:

      |-- lower
      |   |-- delete-me.txt
      |   `-- hello.txt
      |-- merged
      |   |-- hello.txt
      |   |-- new.txt
      |   `-- upper-message.txt
      |-- upper
      |   |-- delete-me.txt
      |   |-- hello.txt
      |   |-- new.txt
      |   `-- upper-message.txt


   And running ls -l upper shows

   total 12
   c--------- 2 root root 0, 0 Jan 20 00:17 delete-me.txt
   -rw-r--r-- 1 root root   12 Jan 20 00:20 hello.txt
   -rw-r--r-- 1 root root    8 Jan 20 00:17 new.txt
   -rw-r--r-- 1 root root    8 Jan 20 00:17 upper-message.txt


While merged displays the effects of our changes, upper operates like the parent layer, storing the changes akin to the process outlined in our manual. It includes the new file new.txt and the modified hello.txt. A whiteout file has also been created. The overlay filesystem accomplishes this by replacing the file with a character device, possessing a 0, 0 device number. Simply put, it has everything we need to package up the directories!

This approach could also be utilized to implement a snapshot system. The mount command can natively accept a colon (:) delimited list of lowerdir paths, which are all unioned together into a single filesystem. This is inherent to modern containers — they are assembled using native operating system features.

That’s essentially all there is to creating a basic system. In fact, the containerd runtime, used by Kubernetes and the recently released Docker Desktop 4.27.0, employs a similar approach to build and manage its images, with the in-depth details covered in Content Flow (https://github.com/containerd/containerd/blob/main/docs/content-flow.md). Hopefully, this has helped to demystify how container images function!

Reference

• https://www.kenmuse.com/blog/understanding-container-image-layers/
